voyager mainline inspection
Home : Products : Mainline Inspection Systems : Voyager™ HD Mainline Inspection System
The Voyager HD Mainline Inspection System is a high definition video system for inspecting mainlines relined 6″ or larger. The complete system includes a powerful transporter, a full HD 1080p WiperCam camera, and 1200’ cable reel — controlled by CANbus technology for instant crawler and camera response. Components are operated by an ergonomically advanced dual joystick controller and reel-mounted pendant.
Voyager Mainline Video Inspection System
Voyager Transporter
Transporter

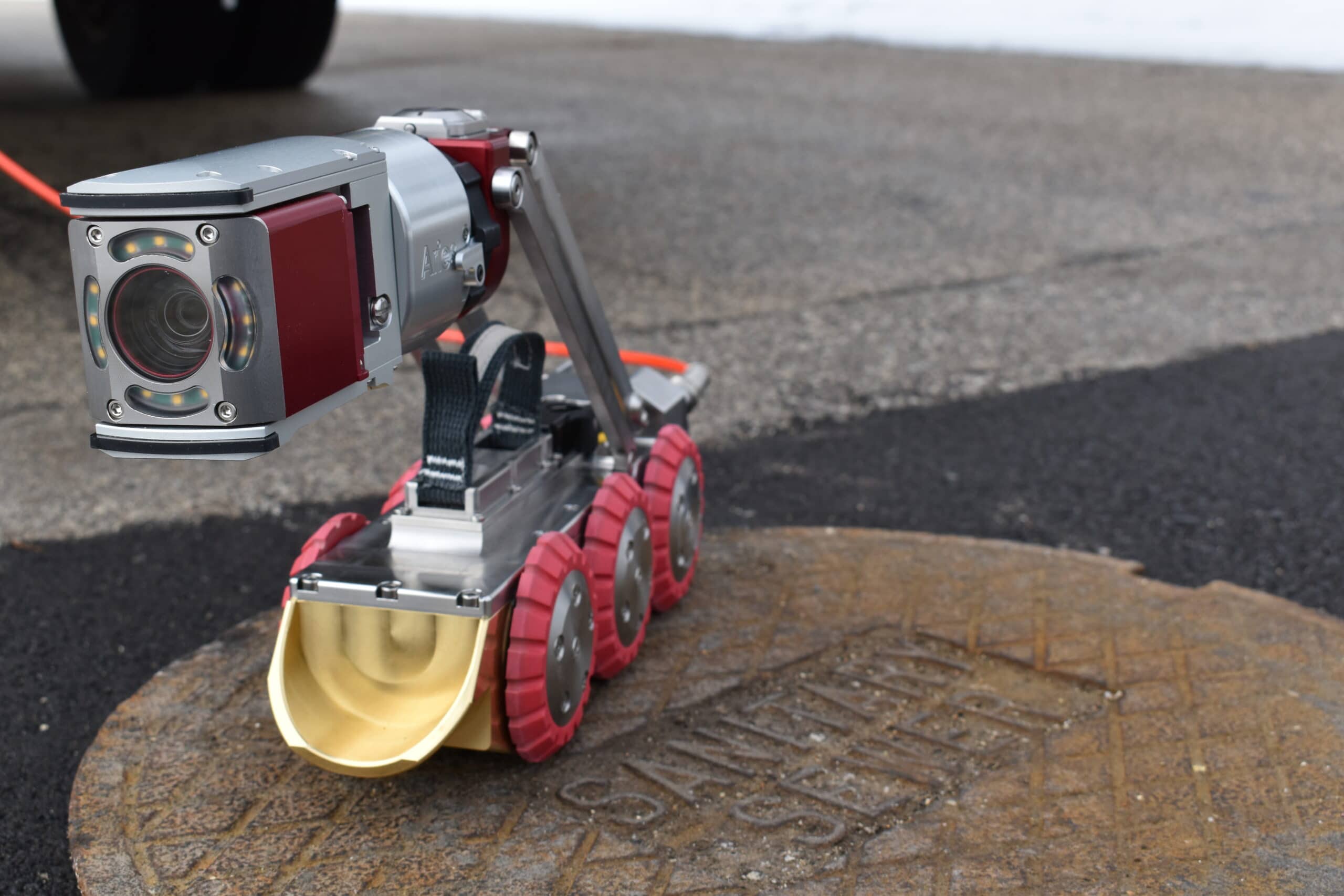

The Voyager’s powerful, proportional steering tractor easily navigates 6″ – 72” relined pipes. Digital CANbus controls provide instant crawler and camera response. The tractor is equipped with a rear-viewing HD camera and an integral motorized lift to center the camera in a range of pipe sizes.

Voyager WiperCam sewer inspection camera
WiperCam Camera

Compact HD 1080p pan and tilt video camera with 120x zoom captures every pipe detail. Built-in Aries lens wiper technology maximizes time in the pipe. Optional dual camera lasers ensure accurate crack measurement.

Voyager Mainline Video Inspection System
Controller & Pendant

The all-in-one dual joystick controller operates the reel, tractor, and camera. Advanced ergonomic design for operator comfort and responsiveness. Control components at the manhole with the handheld pendant.

Voyager Cable
Reel

Truck-mounted reel, with Aries Cable Management System has 1200’ of 6-conductor cable. Simple reel termination, one-button downrigger deployment and spring-loaded retractable cable rollers simplify operation and maintenance.

Voyager™ HD Mainline Inspection System Features

Crawler

  • Proportional steering crawler fits re-lined 6”– 36” (future up to 72”) pipes
  • Standard motorized camera lift with internal gearing
  • Digital CANbus controls for instantaneous crawler & camera response
  • Autonomous time-saving functions such as auto-drive to waypoints & auto-retrieve
  • Tool-less camera attach/detach with rugged connector
  • Tool-less cable attach/detach
  • Tough, reflective Kevlar lift strap with deployment loop
  • HD backup camera

Camera

  • Pan & tilt, 120x zoom HD camera captures and transmits excellent quality, HD video (1080 x 1920px
  • Front camera bumpers
  • In-the-pipe Aries WiperCam lens cleaning system with field-replaceable wipers
  • Optional dual camera lasers for accurate crack measurement

Desktop Controller

  • Ergonomic controller with keyboard and dual joysticks
  • Responds to multiple controls simultaneously
  • Graphical crawler roll-angle display
  • Rollover risk alerts
  • Loss of seal integrity alerts with proactive internal pressure, temperature & humidity monitoring
  • Crawler speed display
  • Future: Ability to record in standard definition

Pendant

  • Control tractor, reel & camera at the manhole with handheld pendant

Cable Reel

  • Truck-mounted reel with 1200 ft of 6-conductor cable
  • 1200-pound pull strength
  • Simple 6-wire reel termination
  • Cable management with electronic clutch responsive to crawler movement
  • Street-accessible reel controls with emergency stop button
  • Quick one-button downrigger deployment
  • Level wind with footage counter
  • Spring-loaded retractable cable rollers for easy cable removal
  • Field serviceable slipring
  • Removeable drip pan
  • Precisely adjustable drum tension control with caliper & floating rotor design
Voyager WiperCam sewer inspection camera
Voyager Camera for Video Mainline Inspections
Voyager Controller and Pendant
