Customize a water well inspection system to meet your specific need. The Water Well Inspection System is made up of five primary components: a winch, winch controller, power supply, camera and, camera controller.

The Water Well Inspection System

Home : Products : Water Well Inspection Systems : Water Well System
water well camera system

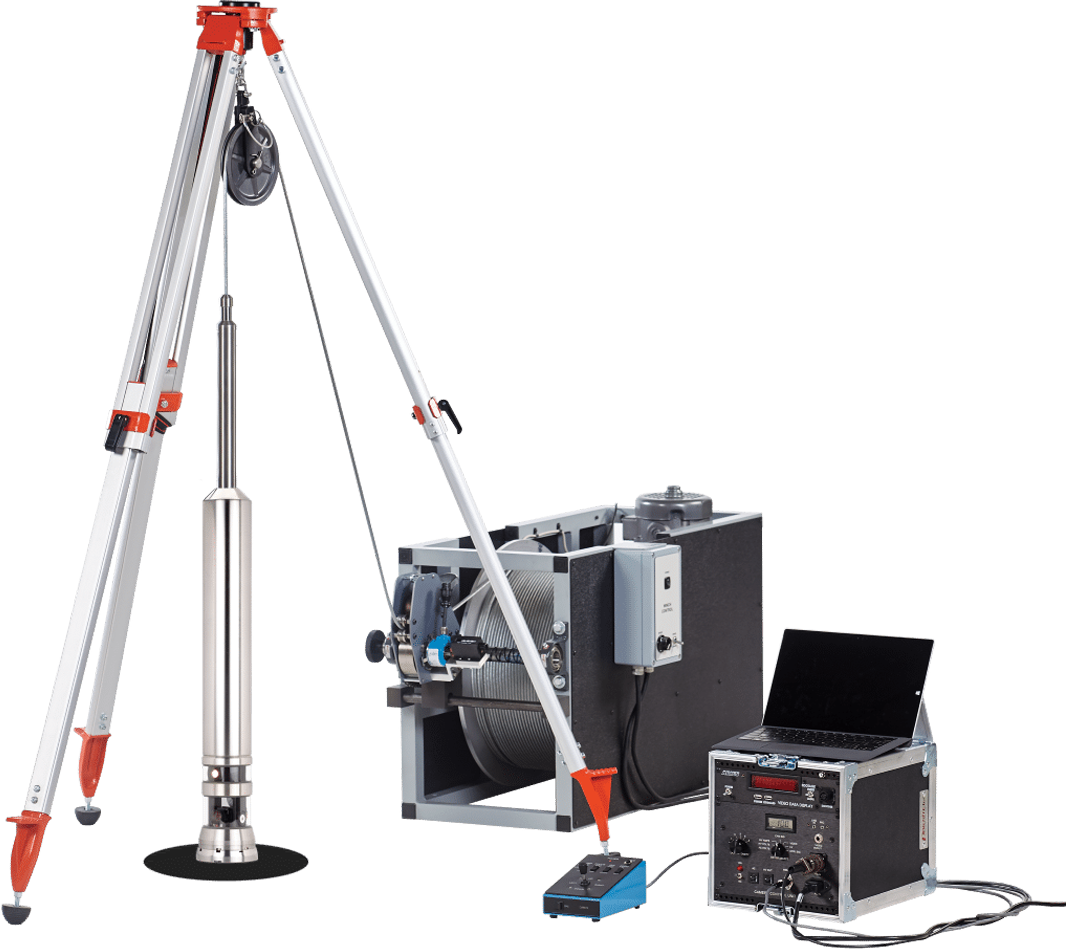

The Water Well Inspection System is made up of five primary components: a winch, winch controller, power supply, camera and camera controller. Also included is your choice of light heads, centralizers, and a lightweight tripod with snatch block.

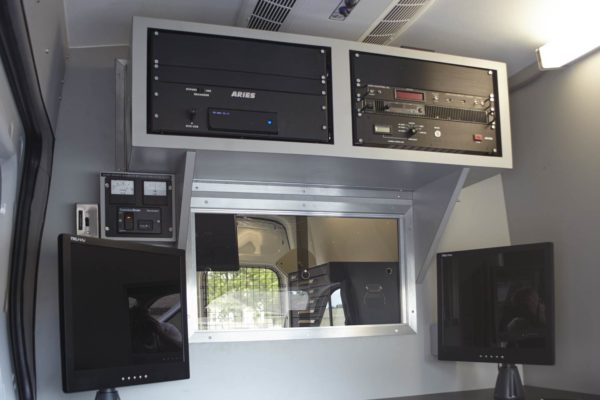

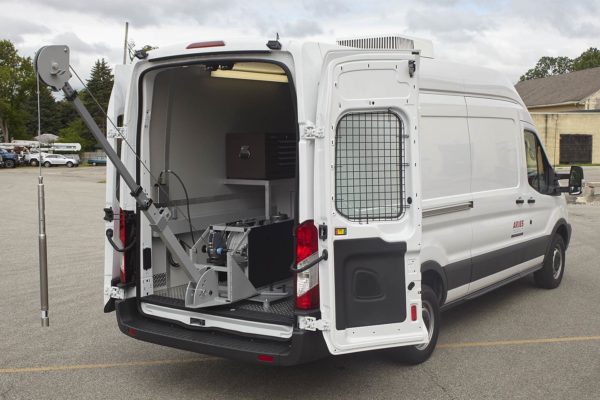

The Water Well Inspection System can be mounted in a vehicle with our optional swivel base winch system with a telescopic boom arm that extends 12′.

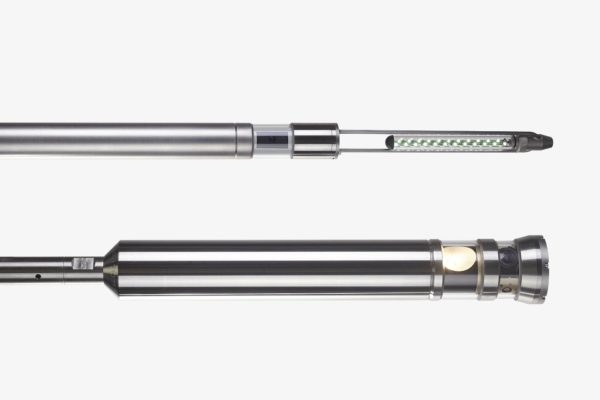

Camera Options

Our advanced cameras are designed to capture high-quality video for evaluating water wells and other boreholes:

  • BT Series Dual View for 4″ diameter boreholes
  • WC Series Slimline for 2″ diameter boreholes
  • Camera Controller – determined by camera model selected
  • Power Supply – choose from two options based on voltage, display units and cable length
Inspection Winch Options

All models are equipped with hand brake, cable head, variable speed controller, and manual counter. Level wind ensures uniform and fast camera retrieval and an encoder displays accurate on-screen depth measurement. Reel capacity ranges from 2000′ – 5000′ of single conductor 1/4″ cable, depending on winch mode.

  • Screen.  8″ (200 mm) LCD; sunlight readable
  • Recording. NTSC or PAL format with Snapshot Photo Capture and Integrated DVR Records to USB Flash Drive
  • Data. On-screen date/time, depth counter (feet or meters) and Fault Annotation & Audio (Microphone)
Winch Controller Options

Choose a hand-held or counter mounted winch controller for 120 VAC or 220 VAC service, based on your selection of inspection winch model.

Rugged Design
  • Heavy-duty, powder-coated steel winch frame resists corrosion
  • Sealed slip-ring for continuous maintenance-free connection
Versatile
  • Component-based system can operate as a mobile set-up or mounted in a vehicle
  • Three camera options to meet requirements
Options
  • Choice of three winches with reel capacity up to 5000 feet of cable
  • Optional swivel base and boom arm
  • Choice of light heads, centralizers, and tripod
